Grillo Pulse
Dual-sensor seismic station for network deployment or densification. Available as a cellular or Ethernet model, and ready for remote sites when powered from a solar and battery system.
$899
Per unit, Ethernet or cellular model
- Ultra-low power consumption
- 4.5Hz Geophone with period extension to 0.5Hz (32-bit ADC)
- Triaxial MEMS accelerometer (ultra-low noise 20-bit ADC)
- Cellular (LTE) or Ethernet models
- 12 V DC input; off-grid with your own solar and battery system
- Real-time data transmission
- Weatherproof IP68 aluminium case
- Nanosecond time precision with GPS
- Plug and play: no digitizer/raspberry pi required

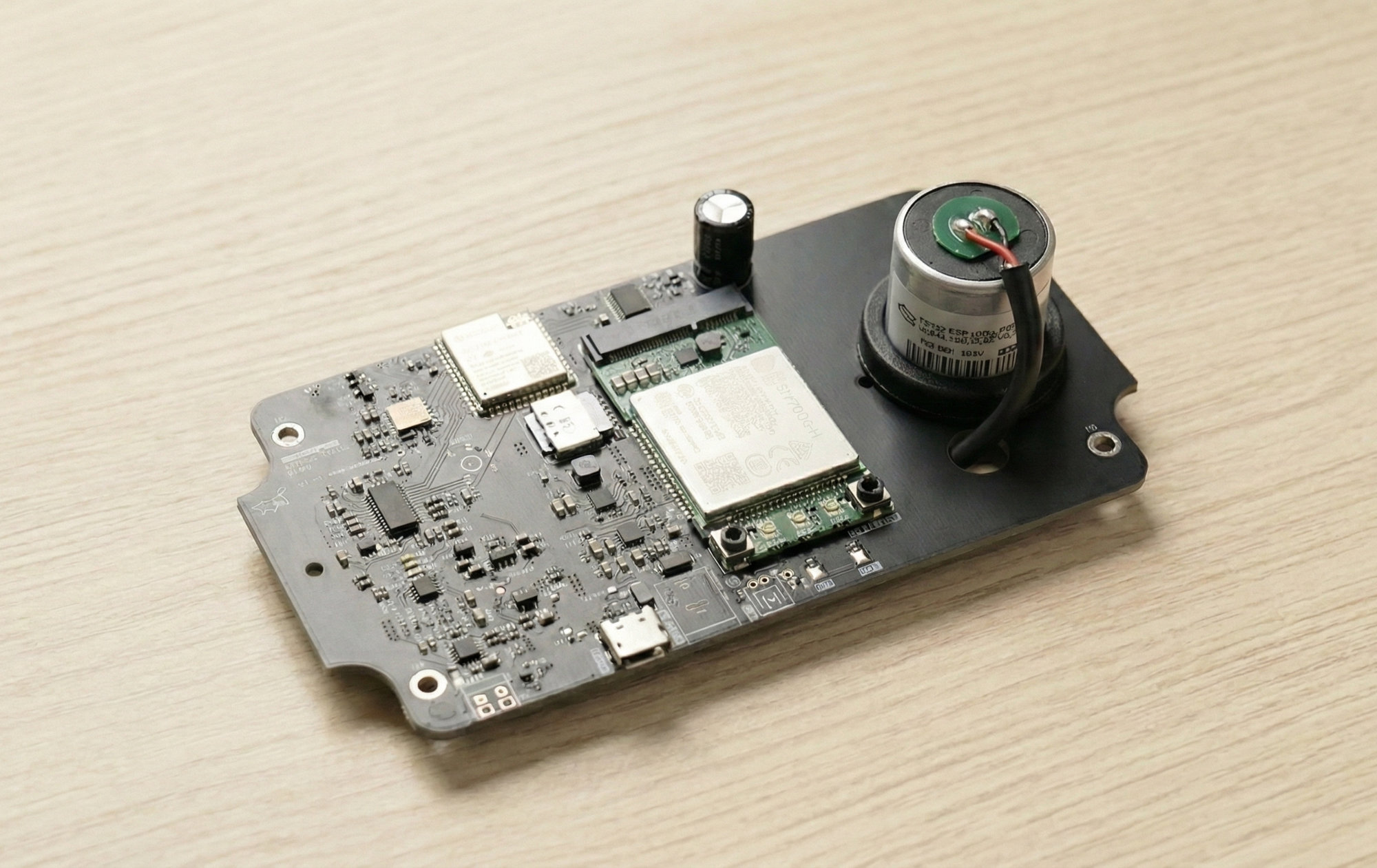

Illustrative image. Current units may look different.
Grillo Pulse Features
Our advanced seismic seismometer comes with these powerful capabilities
Off-grid Ready
Pulse runs from a single 12 V DC input. For remote sites, power it from a solar charge controller and battery system that supplies 12 V DC.
Cellular or Ethernet
Choose the cellular model (LTE) where there is mobile coverage, or the Ethernet model where a wired network is available.
Dual Sensing Technology
Geophone with pole-zero compensation extending the period to 2s (0.5 Hz) for improved detection of distant seismic events, paired with low-noise triaxial MEMS accelerometer for strong motion detection.
All-in-one Solution
Geophone, accelerometer, digitizer and communications in one weatherproof unit - no separate digitizer or computer needed.
Integrations
Configured to transmit directly to your seismic data acquisition system (Earthworm, SeisComP, Python, or Grillo Cloud).
Rapid Setup
Mount the IP68 weatherproof case and connect 12 V DC. For off-grid sites, add a solar charge controller and battery.
Grillo Pulse Specifications
Detailed technical information about this product
Physical
- Dimensions
- 151 x 80 x 60mm
- Weight
- 450g
- Enclosure
- IP68 Weatherproof aluminium case
- Operating Temperature
- -20°C to +60°C
Power
- Power Source
- 12 V DC input
- Battery
- None built in; for off-grid sites use an external solar charge controller and battery supplying 12 V DC
- Energy Consumption
- 1.32W (400mA at 3.3V)
- USB
- Service only; does not power the sensor
Connectivity
- Primary Connection
- Cellular model: LTE Cat-1
- Secondary Connection
- Ethernet model: 10/100 wired Ethernet
- Timing
- GPS/NTP
- Data Transmission
- UDP over CoAP
- Data Format
- JSON/Binary
- Ingestion Software
- Grillo Cloud or on-premise (coap2seis)
Geophone Channel — EHZ
- Geophone element
- 4.5 Hz natural frequency, 0.7 damping
- Signal conditioning
- Pole-zero compensation circuit
- Effective instrument period
- 2 s (0.5 Hz) — 9× extension
- Frequency response
- 0.5 Hz – 50 Hz
- ADC
- 32-bit delta-sigma
- Sample rate
- 100 Hz
- Dynamic range
- ~128 dB
- PGA gain
- 1×–32×, remotely configurable via Grillo Cloud
MEMS Accelerometer — HNE/N/Z
- FDSN channels
- HNE, HNN, HNZ
- Low frequency
- DC (0 Hz)
- High frequency
- ~62.5 Hz (−3 dB at 125 Hz ODR)
- Sample rate
- 125 Hz
- Range
- ±2g
- Resolution
- 20-bit, 3.9 μg/LSB
- Noise density
- 25 μg/√Hz
Real-World Application
See how our technology is making a difference
Caribbean Earthquake Early Warning System
As announced by President Clinton, Grillo is deploying sensor technology to Puerto Rico to strengthen seismic monitoring on the island and build the foundation for an earthquake early warning system throughout the Caribbean region. This initiative will improve earthquake preparedness and response across the region, providing crucial early warnings to vulnerable communities.
Compare with Other Grillo Sensors
See how Grillo Pulse compares to our other seismic monitoring solutions
| Features | Grillo Slide | Grillo Pulse | Grillo One |
|---|---|---|---|
| Primary measurement | RTK GNSS displacement | Seismic waveforms | Strong motion |
| Connectivity | Cellular (LTE) | Cellular (LTE) or Ethernet model | Ethernet or WiFi |
| Timing | GNSS | GPS/NTP | NTP |
| Power Source | Integrated solar + battery | 12 V DC (external solar + battery for off-grid) | USB |
| Battery Backup | |||
| Sensors | Quad-band GNSS + MEMS | MEMS + Geophone | MEMS Accelerometer |
| Off-grid Operation | |||
| Raw observations | |||
| Integration | Displacement records, raw GNSS, Grillo Cloud | Earthworm, SeisComP, Python, Grillo Cloud | Earthworm, SeisComP, Python, Grillo Cloud |
